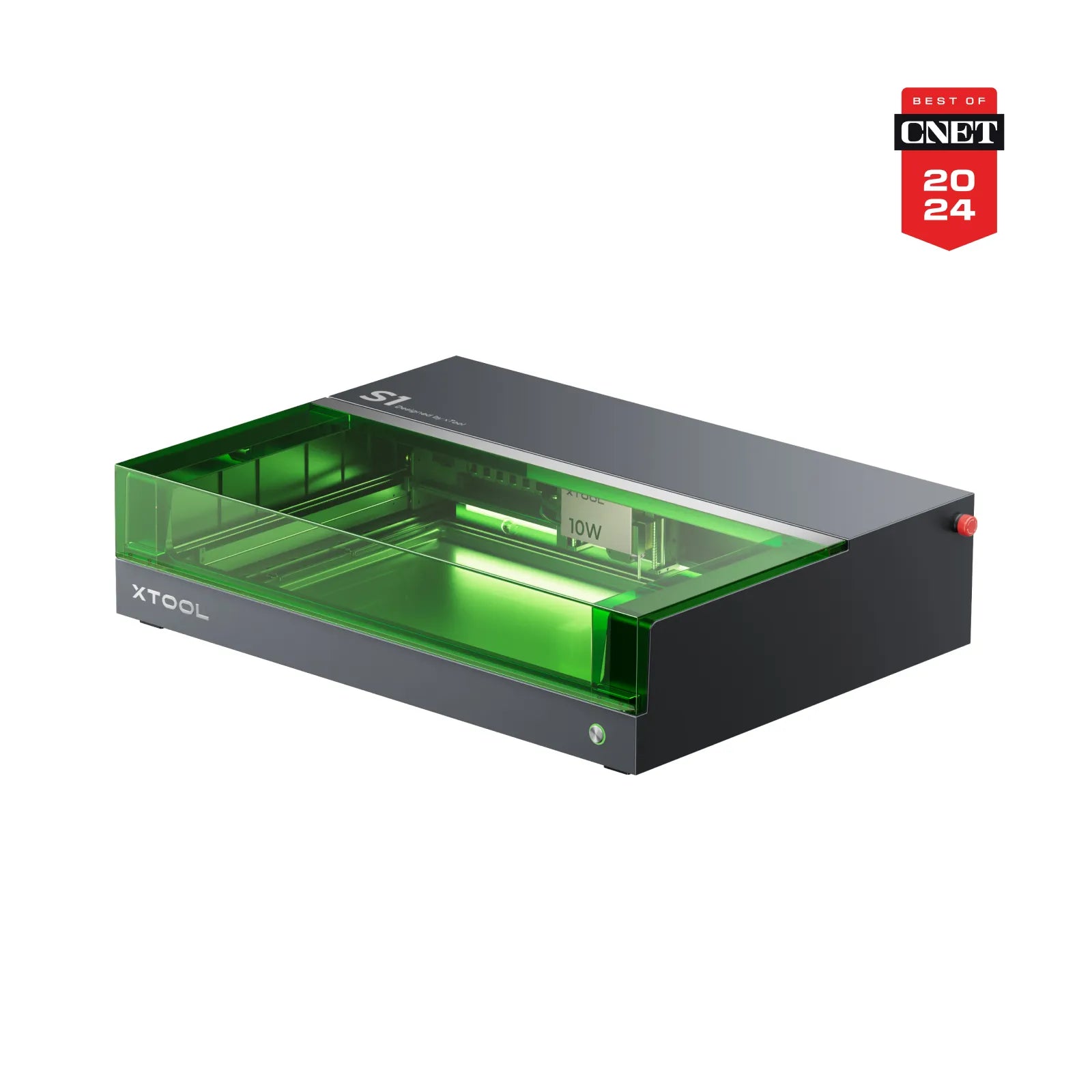

xTool S1 Blue + 1064nm IR Laser Kit
One Machine Meets All Your Engraving &
Cutting Needs.
One Machine Meets All Your Engraving & Cutting Needs.
xTool S1 Blue + 1064nm IR Laser Kit
One Machine Meets All Your Engraving &
Cutting Needs.
One Machine Meets All Your Engraving & Cutting Needs.
One Machine
Two Lasers for 300+ Materials
One Machine
Two Lasers for 300+ Materials
Precise Engraving on All Metals
Achieving awsome engraving outcomes on all metals, plastic, acrylic, and more materials.
Ultra-HD Printing, Highly Detailed
With ultra-tiny laser spots (0.03*0.03mm), the 1064nm IR laser excels at detailed engraving, making it ideal for photo printing, jewelry customization, business cards, and more.
Powerful Cutting & Engraving
40W blue laser cuts 18mm wood in one pass. It also enables deeper engraving on wood, rock, and more. You can even get amazing 3D illusions, stacked carvings with it.
Cutting excellence beyond compare
With advanced laser compression technology, eight 5.5W lasers are combined into 40W, realizing high power cutting efficiency comparable to CO2 machines.
Larger, Faster,
More Efficient
Larger, Faster,More Efficient
The xTool S1 boasts a spacious bed size measuring 23.93"×15.16" (608*385mm). With a working area of 19.6"× 12.5"(498*319 mm), it caters to larger projects and high-efficieny batch processing with ease.
Maximize efficiency with a super-sized workspace, allowing for one-time
positioning and processing without the need for manual retrieval or replacement.
Enables larger-size projects while no extension kit is needed.
Boost stability and efficiency effortlessly.
More Precise, Smarter, Easier
Pin-point Positioning System
xTool S1 uses novel encoders and algorithms to establish a precise absolute coordinate layout and display the laser module's position in real time in the software.
Even More Precise than a Camera
Perfectly replicates the frame of objects based on real-time location of the laser module, even more accurately than camera positioning without distortion.
Perfectly replicates the frame of objects based on real-time location of the laser module, even more accurat25ely than camera positioning without distortion.
Simple Positioning for Multi-Shape Objects
Locate your circular objects accurately with only 3 points. No longer
struggling to find the center point or measure the diameter.
High-effciency batch processing
No jigs needed
Mark multiple processing
areas in one canvas for batch
processing as easily as
camera filling. Say goodbye to
creating a jig for every order.
Multi-shape batch
marking
Supports positioning multiple
objects of different shapes in
batches, offering more flexibility.
Simple Positioning for Multi-Shape Objects
Locate your circular objects accurately with only 3 points. No longer struggling to find the center point or measure the diameter.
High-effciency batch processing
Mark multiple processing areas in one canvas for batch processing as easily as camera filling. Say goodbye to creating a jig for every order.
Auto-focus
System
Dynamic-focus engraving: perfect on uneven surfaces.
xTool S1 boasts a cutting-edge intelligent focusing system for multi-point focus ranging and 3D object automation. Its electric Z-axis dynamically refines focus, delivering a perfect engraving effect like a plane.
More Simple Focus, More Accurate Results
Mark multiple processing areas in one canvas for batch processing as easily as camera filling. Say goodbye to creating a jig for every order.
One-click Auto-focus
Only one click in XCS is needed for quick focus, freeing you from manual tightening or loosening screws.
Master in every outcome
Guides the spot to lower below the surface to unleash the cutting ability and engraving precision.
User-friendly Software
Empowered software for your seamless workflow.
Our free software, XCS, offers 500+ shape collections, 1000+ projects and smart functions such as AI drawing, Auto-focus and Auto-snapping for beginners' use. LightBurn is also supported for pro use.
Twin-point positioning, camera-like precision.
Discover xTool's unique Twin-point positioning technology. Achieving pattern placement with precision rivaling camera methods, all with unmatched ease and accuracy.
Center point made simple
Track the laser movement live via our software, ensuring your design is flawlessly centered and executed to perfection.
As Easy As 1-2-3
Simple Positioning
Mark your processing areas wthin points.
Drag and Drop
Insert your pattern and align with auto-snapping.
Process and Done
Set parameters and press the button, waiting for your creations.
Simple Positioning
Mark your processing areas within points.
Process and Done
Set parameters and press the button, waiting for your creations.
Drag and Drop
Insert your pattern and align with auto-snapping.
Approved by IEC
Class 1 laser safety certification
Approved by IEC
Class 1
laser safety certification
Enclosed & eye-friendly
Advanced dual-light (diode laser & IR laser) filtering eliminates the need for glasses.
Emergency stop design
Easily touch tohalt processing instantly.
Lid-open safety stop
Opening the cover instantly halts operation to prevent laser leakage.
Enhanced 5-direction flame detection
Features enhanced sensitivity and wider flame detection.
Fresh air. Fresh ideas.
Efficient smoke exhaust system
The high-performance exhaust system, coupled with the exhaust fan, efficiently filters and expels smoke and dust generated during the machine's operation.
Efficient smoke exhaust system.
The high-performance exhaust system, coupled with the exhaust fan, efficiently filters and expels smoke and dust generated during the machine's operation.
Clear air: purify as you create.
Paired with an air purifier, it ensures a healthier workspace by effectively capturing and filtering airborne particles and fumes.
Accessories
xTool S1, when paired with the optional RA2 Pro rotary attachment, enables intricate engravings on items like tumblers, mugs, and rings, turning each piece into a work of art.
Accessories
xTool S1, when paired with the optional RA2 Pro rotary attachment, enables intricate engravings on items like tumblers, mugs, and rings, turning each piece into a work of art.
A one-stop solution for all your machine upgrades.
xTool S1 Smart Air Assist
Automatically adjusts airflow to boost cutting capabilities and achieve cleaner edges
BUY NOW
xTool S1 Smart Air Assist
Automatically adjusts airflow to boost cutting capabilities and achieve cleaner edges
BUY NOW
xTool S1 Fire Safety Set
World's first automatic fire safety set for fire detection and fire extinguishing
BUY NOW
xTool S1 Automatic Conveyor Feeder
Automatically engraving and cutting materials up to 118" long
BUY NOWxTool S1 Automatic Conveyor Feeder
Automatically engraving and cutting materials up to 118" long
BUY NOWA one-stop solution for all your machine upgrades.
xTool S1 Smart Air Assist
Automatically adjusts airflow to boost cutting capabilities and achieve cleaner edges
BUY NOW
xTool S1 Automatic Conveyor Feeder
Automatically engraving and cutting materials up to 118" long
BUY NOW
xTool S1 Fire Safety Set
World's first automatic fire safety set for fire detection and fire extinguishing
BUY NOW
Our results speak for themselves.
Join Our Facebook Group
Join the active xTool P2 Facebook community, a vibrant hub for sharing ideas, discovering the latest updates, and engaging with real users.
Explore genuine user reviews
Dive into authentic reviews and project videos to learn more about our machines before you place your order.
Stay updated with the latest test results
Our creative users continuously share their innovative ideas, inspiring projects, and valuable tips.
Get answers and feedback promptly
With numerous experts in the group, you can ask questions and receive valuable suggestions from our supportive members.
The unrivaled choice trusted by diode laser experts.
This is just engraved inside of the processing areas that we told it to. The advantages of using this is that it's crazy accurate. There is no more guesswork or messing up.
--Cornelius Creations
Autofocus is one of those things that saves so much time over the course of your laser work and you don't realize how much you appreciate it until you don't have it.
--Justin Laser
With all the new safety put into this machine I cannot wait to bring it into the house and teach my wife and kids how to use it.
1
--Chads Custom Creations
Our Results Speak for Themselves.
''The S1 diode laser is an excellent machine with more safety features than an open frame laser, plus 40 watts of power for speedy cutting and engraving.''
1
"This highlights the first great feature of this machine – easily interchangeable laser modules. Not only can you change the laser module, but it is very easy to do so."
''We weren’t able to find any spots where light leaked out of the machine, so we can confirm that the lid seals as it should.''
Our Results Speak for Themselves.
"This highlights the first great feature of this machine – easily interchangeable laser modules. Not only can you change the laser module, but it is very easy to do so."
Learn More>
''We weren’t able to find any spots where light leaked out of the machine, so we can confirm that the lid seals as it should.''
Learn More>
FAQ
Specifications
| - | xTool S1 40W Laser Machine | xTool S1 20W Laser Machine | xTool S1 2W IR Laser Module |
|---|---|---|---|
| Product Certification | IEC/EN60825
US: FCC FDA Canada: IC Australia and New Zealand: RCM, SAA United Kingdom: UKCA Japan: Telec, PSE European Union: CE-RED, ROHS, EN60825, CE-MD | IEC/EN60825
US: FCC FDA Canada: IC Australia and New Zealand: RCM, SAA United Kingdom: UKCA Japan: Telec, PSE European Union: CE-RED, ROHS, EN60825, CE-MD | IEC/EN60825
US: FCC FDA Canada: IC Australia and New Zealand: RCM, SAA United Kingdom: UKCA Japan: Telec, PSE European Union: CE-RED, ROHS, EN60825, CE-MD |
| Laser Power | 40W | 20W | 2W |
| Spot Size | 0.08*0.10 mm | 0.08*0.06 mm | 0.03*0.03 mm |
| Cutting Ability | 18mm wood, 15mm black acrylic in one pass | 10mm wood, 8mm black acrylic in one pass | Engraving only |
| Cuttable Materials | wood, dark opaque acrylic, paper, MDF, felt | wood, dark opaque acrylic, paper, MDF, felt | Engraving only |
| Engravable Materials | Painted metal, Stainless Steel, Paper, Wood, Leather, MDF, Dark opaque acrylic, Bamboo, Fabric, Darkglass, Ceramic, Jade, Marble, Shale, Cement, Brick | Painted metal, Stainless Steel, Paper, Wood, Leather, MDF, Dairk opaque acrylic, Bamboo, Fabric, Darkglass, Ceramic, Jade, Marble, Shale, Cement, Brick | All Metals (Gold, Silver, Brass, Iron, Aluminium, Stainless Steel, and mopre), Plastic, Dark opaque acrylic |
| Working Speed | 600 mm/s | 600 mm/s | 600mm/s |
| Working Area | 498*319 mm 19.61*12.56 inches | 498*330 mm 19.61*13 inches | 498*330 mm 19.61*13 inches |
| Working Area with Automatic Conveyor Feeder | 470mm*3000 mm (additional transmission rail is required) | 470mm*3000 mm (additional transmission rail is required) | 470mm*3000 mm (additional transmission rail is required) |
| Output Voltage | 25V 11A | 24V 8A | / |
| Connection Way | USB/Wi-Fi | USB/Wi-Fi | USB/Wi-Fi |
| Support XCS System | Phone: Android & iOS
Tablet: iPad Computer: Windows 10 or above & macOS | Phone: Android & iOS
Tablet: iPad Computer: Windows 10 or above & macOS | Phone: Android & iOS
Tablet: iPad Computer: Windows 10 or above & macOS |
| Software | XCS/Lightburn | XCS/Lightburn | XCS/Lightburn |
| Support File | SVG/DXF/JPG/JPEG/PNG/BMP/TIF | SVG/DXF/JPG/JPEG/PNG/BMP/TIF | SVG/DXF/JPG/JPEG/PNG/BMP/TIF |
| Product Weight2mm | 20KG | 20KG | 560g |
| Product Size | 765*561*183 mm (excluding riser base) 765*561*268 mm (including riser base) | 765*561*183 mm (excluding riser base) 765*561*268 mm (including riser base) | 114*71.15*77.2mm |
