Key Features
Why Upgrade to xTool MetalFab: Faster, Easier, and Cleaner

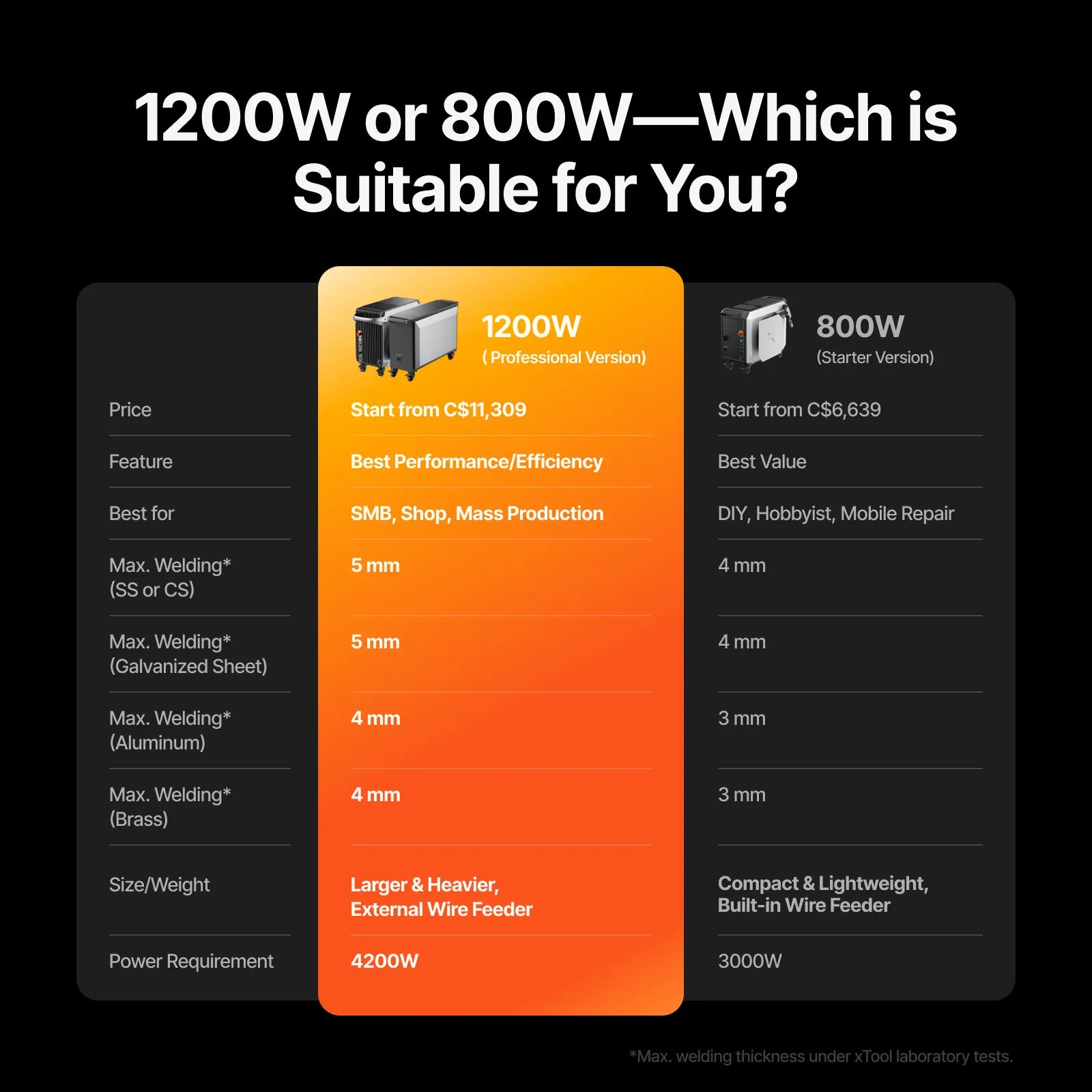

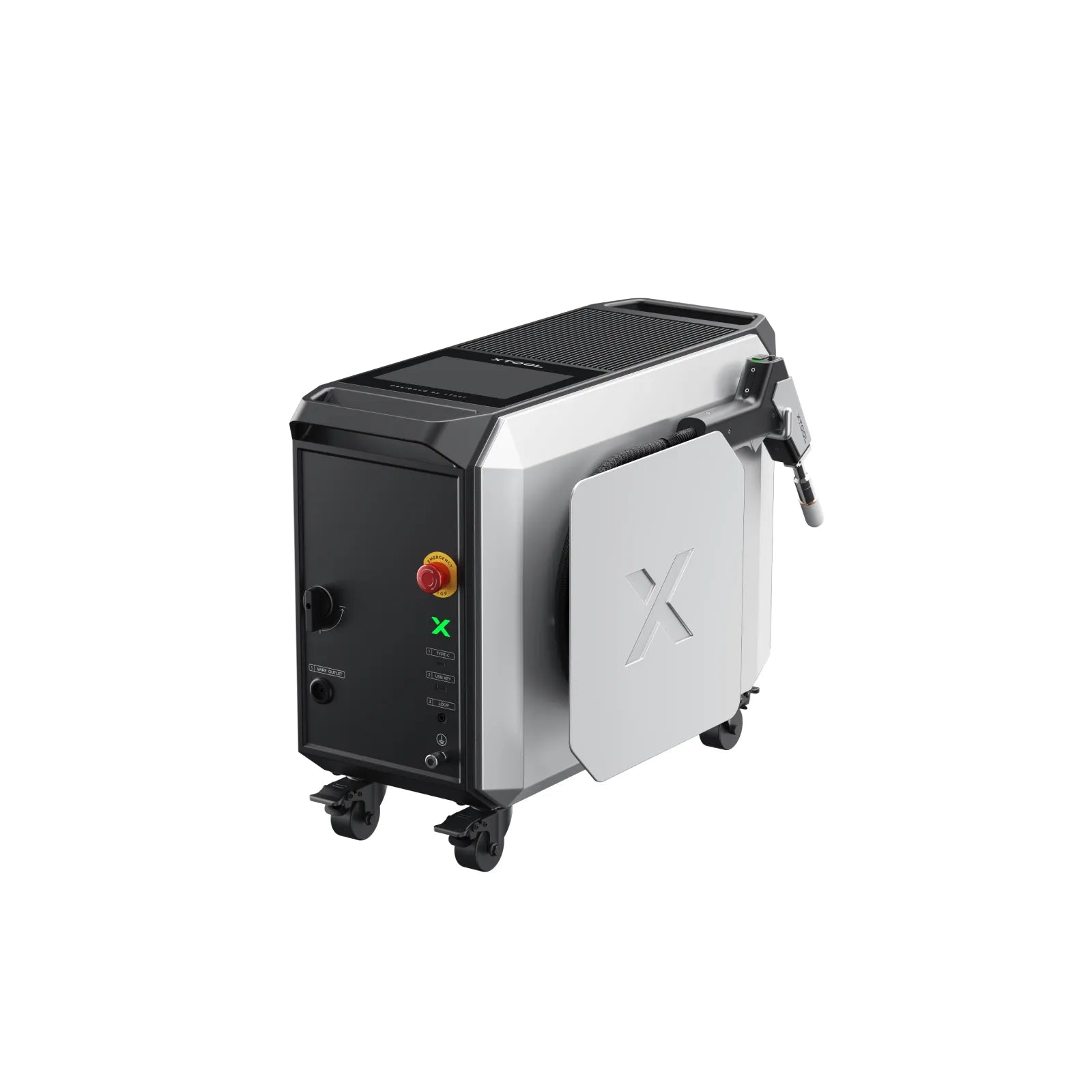

1200W or 800W—Which is Suitable for You?
Laser = Unsafe? Check Our Protections!
We understand the concerns about handheld lasers. That's why we engineered a multi-layer safety system designed for real-world workshops.
Ultimate Guide & Service: Feel Free to Begin
We not only sells the machine, but also full service. We'are here tp help with every step of your journey.
Real Stories: Boosted Efficiency, Reduced Cost, Zero Learning Curve
"It cuts our labor costs significantly."
It allows our staff to operate without issues. Just follow presets, and get smooth, strong welds. For thin brass or small parts, like window flashing or small caps, laser does it in one go – no grinding or polishing.
"In just a few days, I cut and welded over 2,000 parts."
I got a very large order for cutting and welding to create Christmas market stalls. Once again, the machine proved its reliability and performance. It worked non-stop for two weeks without any issues.
"Cut 8-hour tasks down to 1.5-2 hours. No more post-processing."
Now when welding a long handrail or large door frame, we completed it in one pass with perfect dimensions. No more post-weld cleanup like before. Laser welding saves us hours, so our small team takes on more orders without extra hires.
"MetalFab reduces welding time by 50% with almost no cleanup."
We fabricate large doors and railings with over 1,000 welds – 98% done by laser. MIG needed heavy cleanup. TIG was too slow. Now laser welding cuts time by 50% with zero post-weld cleanup.
"Welding 14-gauge rectangular tubes like butter"
Using 14ga 3x2 rectangular tube for the table, 14ga 2 x 2 for the legs, and 14 ga carbon steel sheet for the top. 1.6mm wire for welding and cutting like butter. 1.6mm was more forgiving with fitment gaps and worked out great for this project.
"Laser welding exhaust pipe is much faster than TIG."
Like a dream. It's really easy – just select the metal and wire type on screen and the parameters apply automatically. Honestly, it's way faster than TIG, and the results are coming out actually wicked.
Genuine Reviews from Experts.
This 800W Laser Welder Might Change Small-Shop Fabrication.
Is laser welding difficult to pick up? I showed my daughter how to do it today, and it's actually super simple.
xTool MetalFab Laser welding and cutting vs traditional tools vs XLaserLAB X1: Cuts cleaner, welds deeper, and integrates cutting/welding/cleaning in one—This Tool Replaces Your Entire Metal Shop!
I welded an aluminum portrait sculpture with the xTool laser welder, and I was blown away by the results. So easy, barely any deformation – way better than TIG!
I Built the THINNEST Street Legal Car with xTool MetalFab which can weld, cut, and clean metal!
Dubbed the world’s first all-in-one laser welding and CNC metal cutting solution, the xTool MetalFab is built for modern makers—from small business owners and auto repair shops to home-based creators who’ve outgrown their Dremel.
Employing the xTool MetalFab in your hobby shop means you'll be able to cut (and weld) just about any type of metal. At the xTool Demo Space I visited to see a pre-release unit, we saw everything from chairs and side tables to ornaments, wall hangers, and more made with the MetalFab.
Even if you already have experience with welding, xTool MetalFab's user-friendly designs will noticeably cut down your workload with speed and precision.
The xTool MetalFab Laser Welder and CNC Cutter is the first of its kind. Instead of purchasing multiple pieces of equipment, this revolutionary machine can do it all.

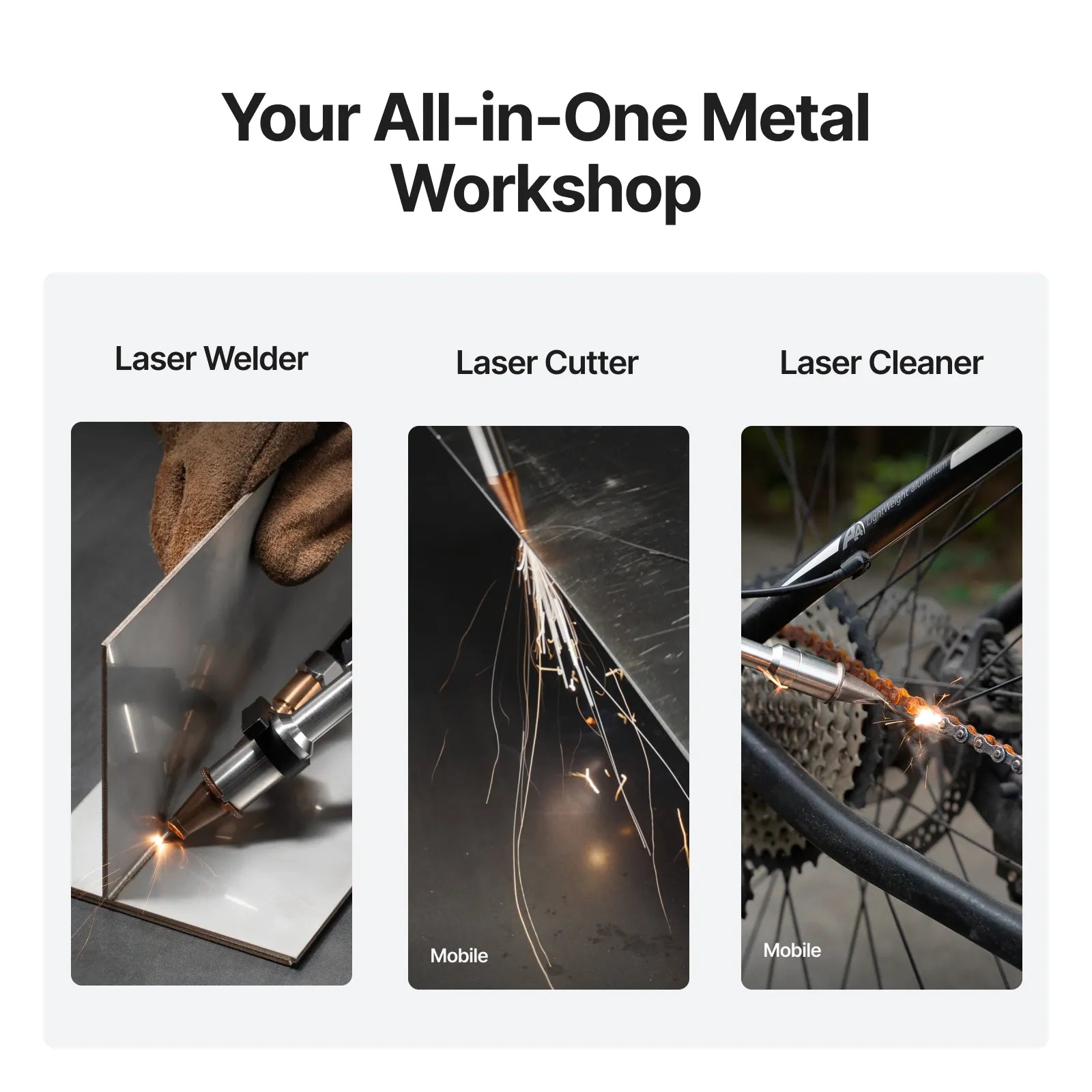

MetalFab isn’t just a cutter; it’s a whole metal fabrication system. By making the laser head detachable, they’re offering a cutter, cleaner, and welder in one.
In the Box
Accessories and Consumables for Your MetalFab
Choose the necessary parts according to your needs and consuming frequency.
% off
% off
% off
% off
% off
FAQ
xTool MetalFab can cut/stainless steel, aluminum, brass, carbon steel, galvanized sheet, titanium, nickel alloy, magnesium, etc.
Welding and cutting capabilities:
- The 1200W welder can weld up to 5mm stainless steel/carbon steel, while the 800W model handles up to 4mm.
- The 1200W welder can cut (handheld cutting) up to 5mm stainless steel/carbon steel, while the 800W model handles up to 3mm.

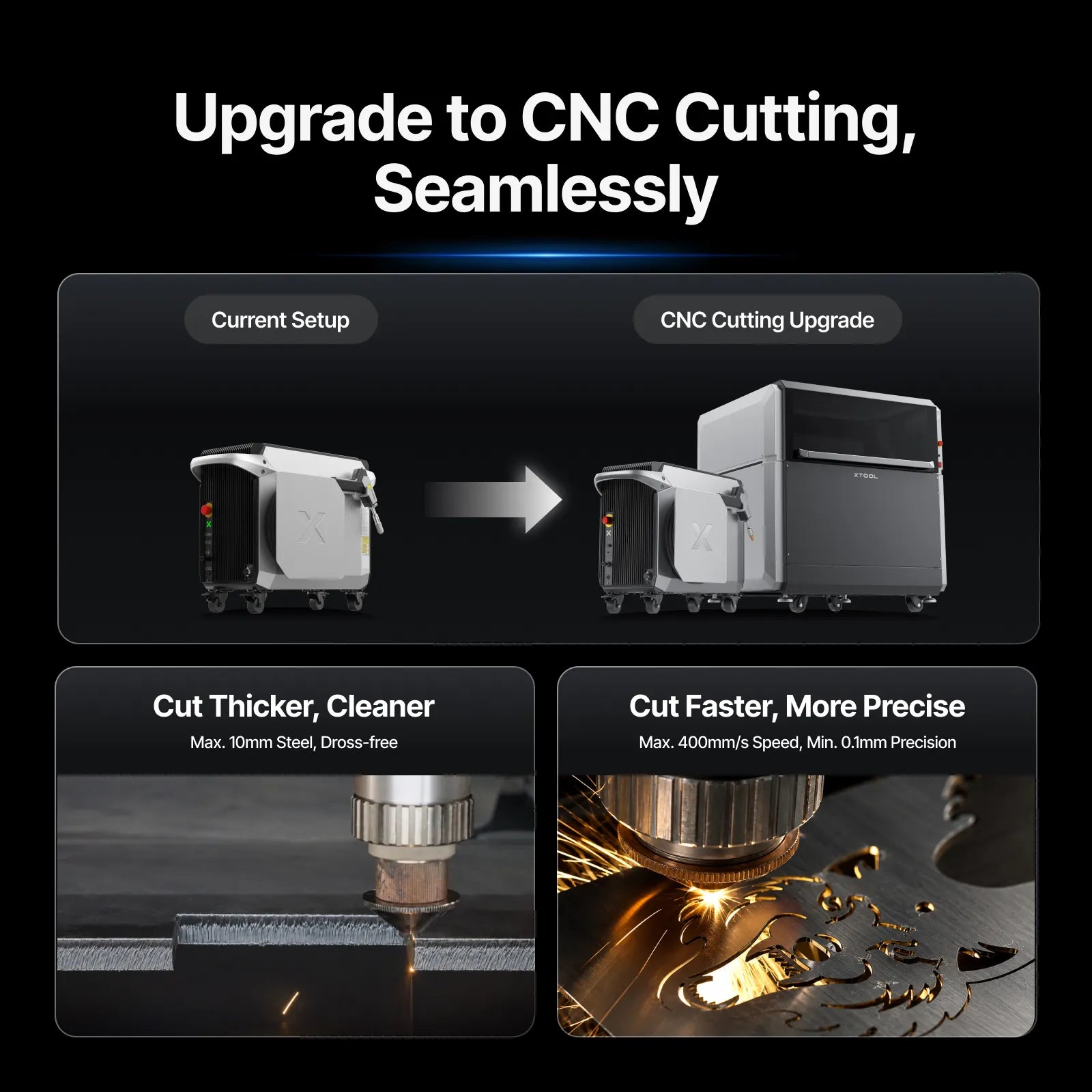

- When paired with a CNC cutting platform:
- 1200W: Burr-free cuts for 5mm stainless steel, 4mm aluminum, 3mm brass, 10mm carbon steel/galvanized sheet. Cut Max. 12mm carbon steel with dross.
- 800W: Burr-free cuts for 3mm stainless steel, 2mm aluminum, 2mm brass, 8mm carbon steel/galvanized sheet.
Design differences:

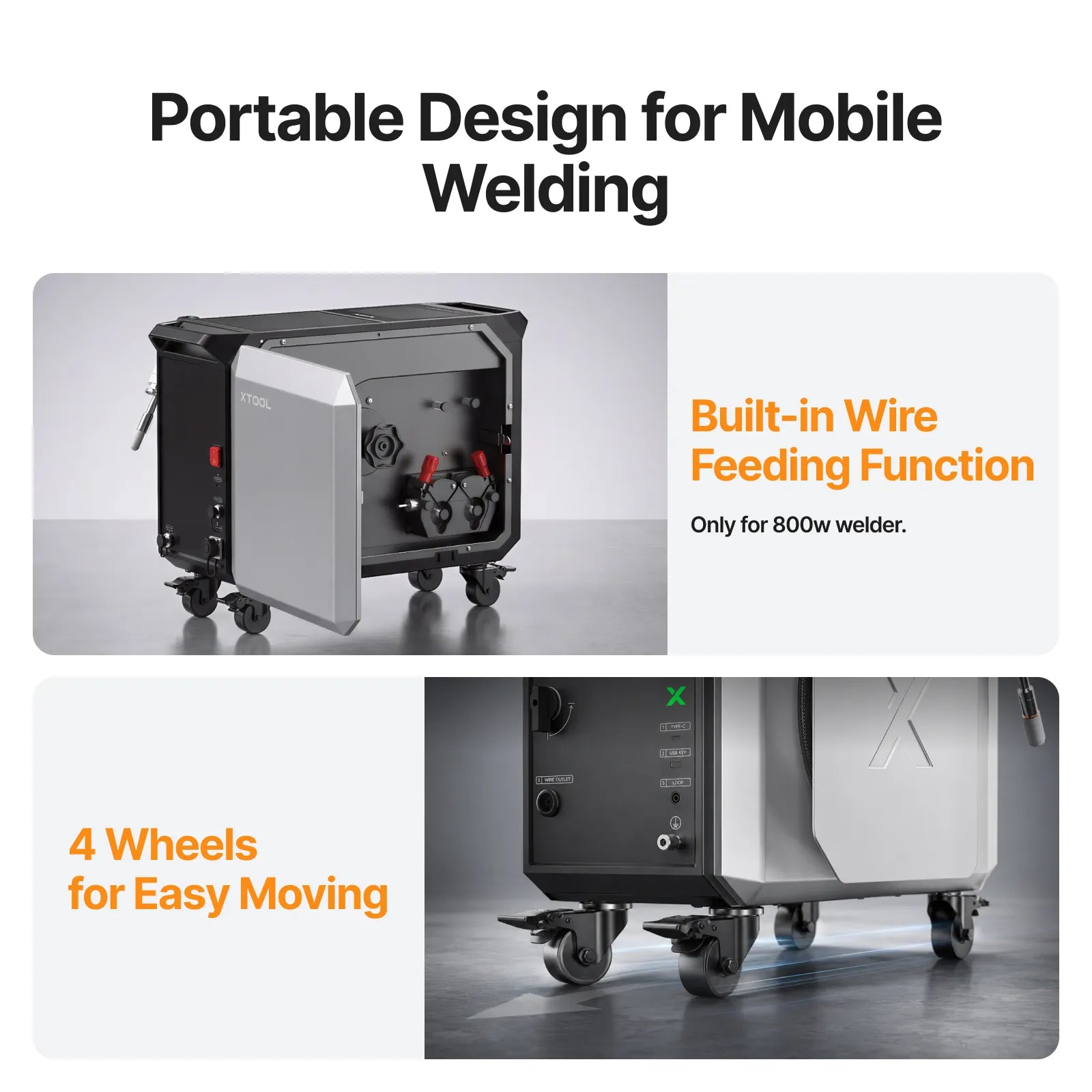

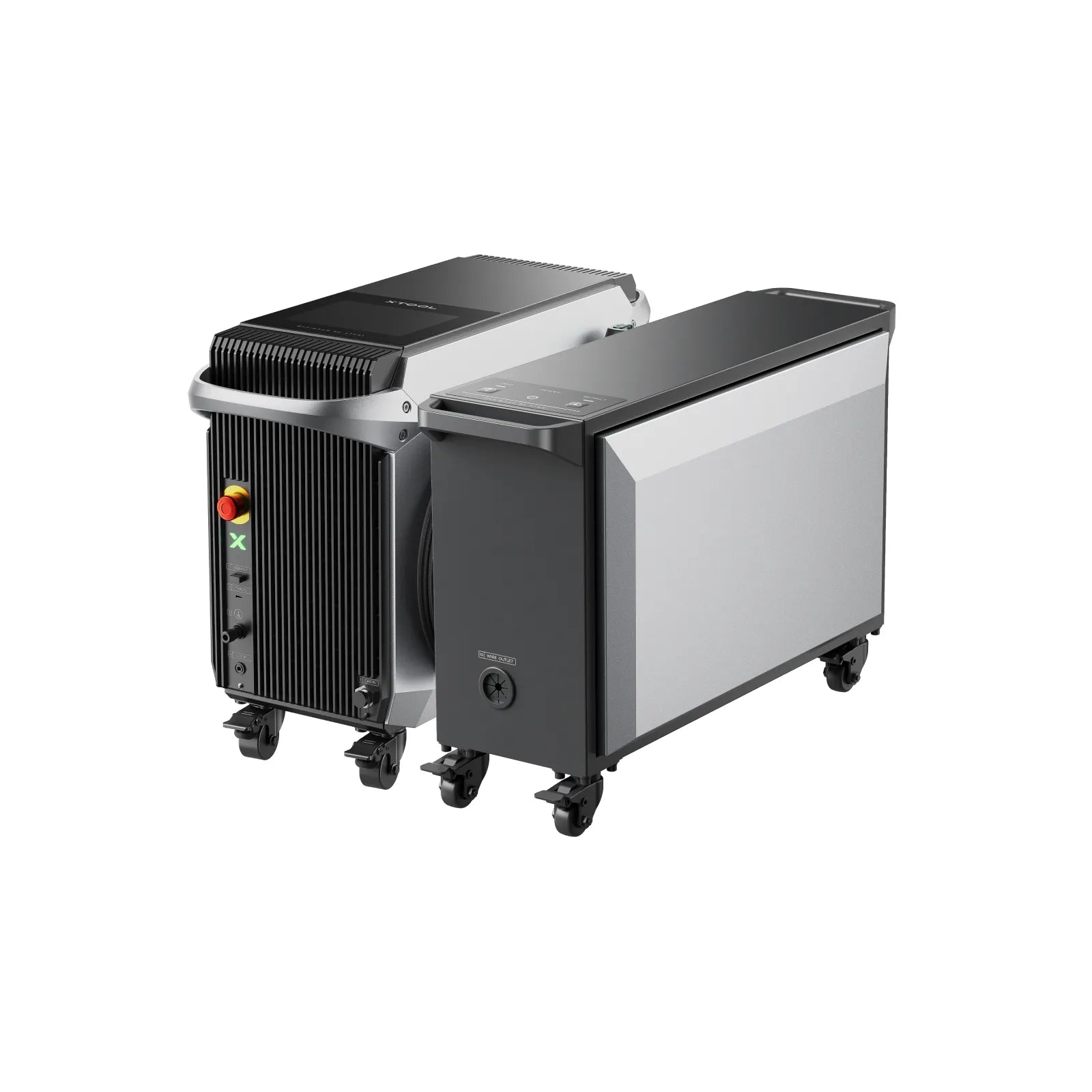

- The 1200W welder includes a free wire feeder, while the 800W model has a built-in wire feeding mechanism and is lighter in weight.
Welding: Nitrogen or argon gas with purity above 99.99% is suitable for most metals. The required welding pressure ranges from 0.1–0.2 MPa, with a gas flow rate of 15–30 L/min (argon is required for welding titanium alloys).
Cutting: Compressed air, nitrogen/argon (purity >99.99%), or oxygen are commonly used as shielding gases.
- xTool air compressor and air dryer provide stable compressed air, enabling burr-free cuts at 0.6 MPa for 4mm stainless steel, 4mm aluminum, 3mm copper, 1mm carbon steel, and galvanized steel (1200W laser) when paired with xTool SaveGas™ Nozzle. This setup significantly reduces costs compared to gas cylinders.
- Nitrogen/argon (at 1.2 MPa) can achieve burr-free cuts for the same materials (1200W).
- Oxygen is primarily used for cutting carbon steel and galvanized steel above 1mm thick. With a dual-layer nozzle and focal extension tube at 0.06–0.07 MPa, it can cut up to 10mm carbon steel/galvanized steel (1200W).
Cleaning: Compressed air is sufficient, but nitrogen or argon is recommended for brighter, oxidation-free results.
We have designed xTool MetalFab to ensure a smooth and simple user experience, so you don’t need to worry about lacking experience—you can get started in just five minutes!
It features the 550g ultra-light integrated welding gun which enables a 5-second quick-release.

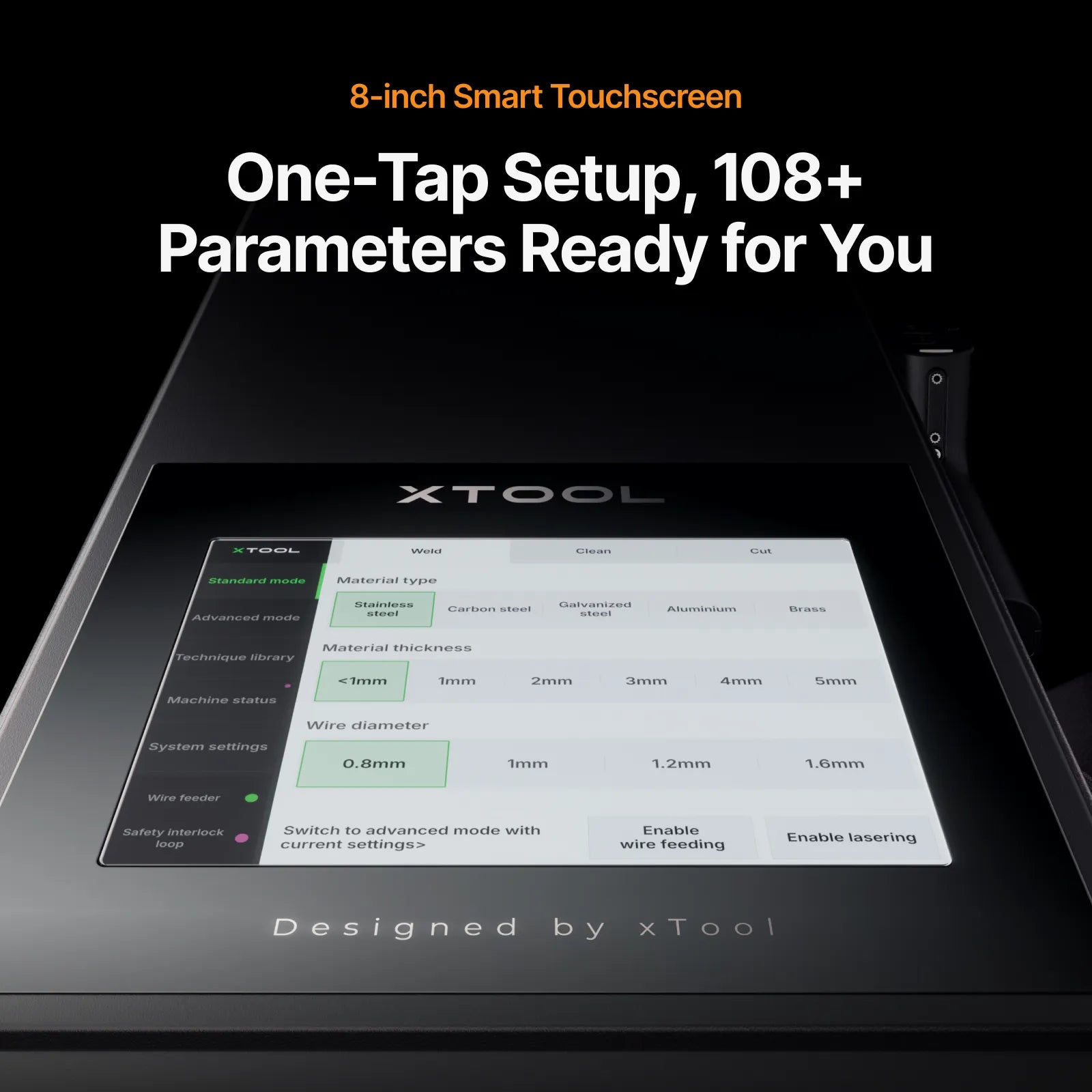

The 8-Inch Smart Touchscreen has 108+ built-in parameters for one-click use.
Laser welding is safe when you wear necessary PPEs and follow the must-know operation tips. xTool laser welder features multiple safety protections including emergency stop button, inter lock, safety circuit design and dual-trigger buttons. It only enables laser emission when the welding nozzle contacts metal pieces. We also provided the necessary PPEs (OD 6+ laser welding goggles and heat-resistant gloves) for your safety. For more operation cautions, you can click the safety video for detailed training.

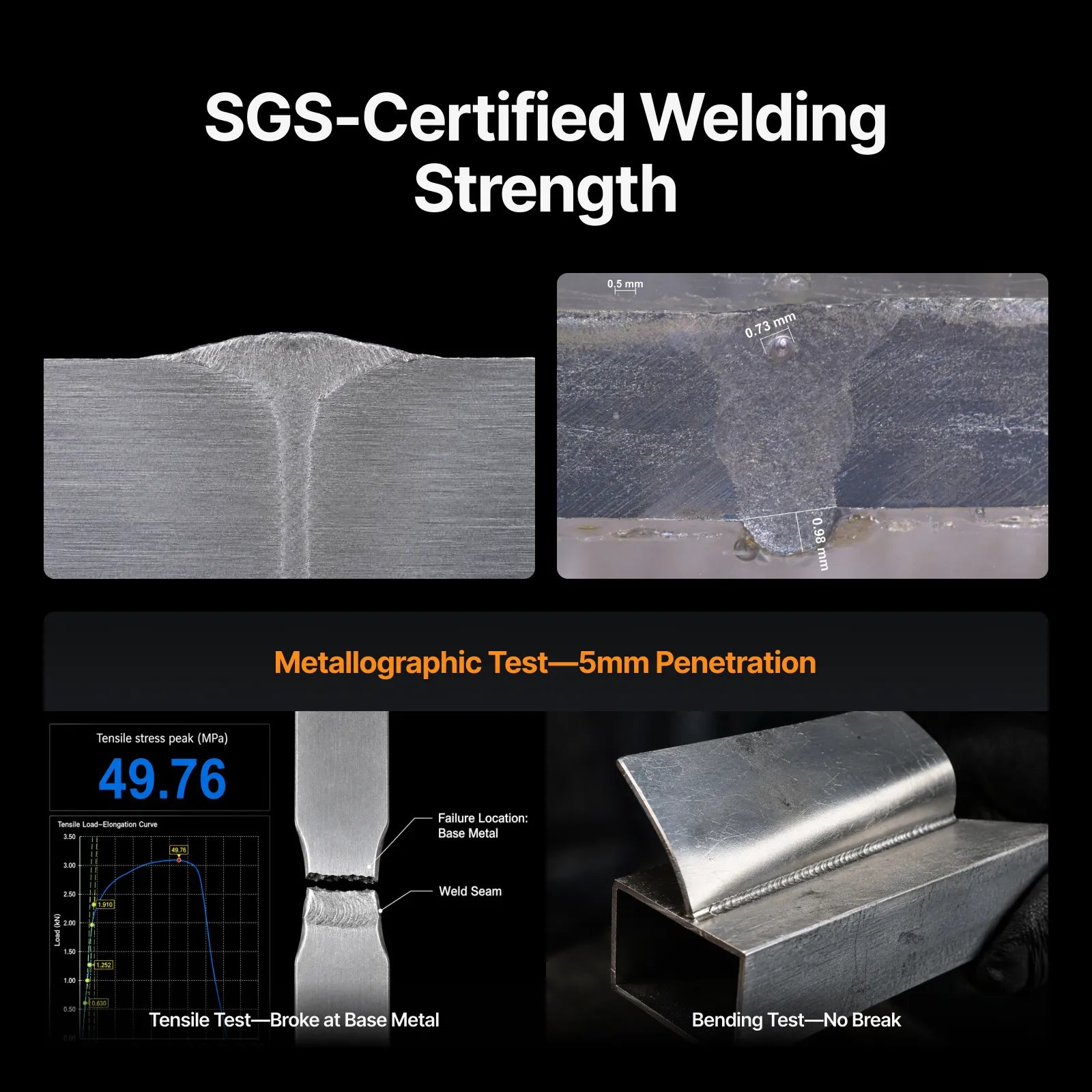

xTool MetalFab can weld up to 5mm stainless steel or carbon steel, and we have passed SGS welding quality tests (including tensile tests, dye penetrant testing, and metallographic examination conducted to the standard of ISO 15614-1), so you can rest assured about its performance and reliability!
Yes, we are building a global localized service network, with established local service teams in the U.S. and Europe. You can access:
- 24/7 online support (via email, live chat, or phone).
- 1-on-1 dedicated warranty assistance.
- Demo room reservations for in-person machine testing and material trials.
You can access the after-sales policy, shipping policy, warranty policy via the link.
Important note:
Please keep the original packaging in case you need to return or exchange the item. For specific service policies, please see the link.
Avis clients
Je ne m'attendais vraiment pas à ce que cette machine arrive dans cet état. J'ai eu l'impression qu'elle avait été expédiée en première classe. J'ai hâte de commencer.
La xTool Metal Fab est une machine extrêmement performante pour tous les professionnels du travail des métaux. Dès sa mise en marche, il est évident que cette machine a été conçue pour la précision, l'efficacité et la fiabilité. Les coupes sont nettes, régulières et de qualité professionnelle, qu'il s'agisse de tôles fines ou de matériaux plus exigeants.
Ce qui frappe surtout, c'est sa conception ingénieuse. L'interface est intuitive, la configuration est d'une simplicité rafraîchissante et la qualité de fabrication est irréprochable. Il gère les projets complexes avec aisance tout en conservant une précision impressionnante, permettant un gain de temps considérable sans compromis sur la qualité.
Pour les créateurs, les artisans et les professionnels, la xTool Metal Fab n'est pas qu'un simple outil : c'est une véritable révolution dans votre flux de travail. Durable, polyvalente et conçue pour la performance, elle s'impose comme une solution de pointe dans la fabrication métallique moderne.
Hautement recommandé pour tous ceux qui recherchent puissance, précision et tranquillité d'esprit dans une seule machine.
Le travail du métal n'est pas mon domaine de prédilection, mais j'ai toujours été fasciné par ce matériau, notamment pour l'artisanat et les projets à petite échelle.
J'ai été impressionné par l'emballage et l'organisation de ces machines tout au long du transport. Vu le prix, il était évident que les palettes étaient conçues pour un transport en toute sécurité et que tout est arrivé en parfait état.
L'installation était simple et intuitive grâce aux outils, à la documentation et aux tutoriels vidéo fournis. Le gain de place de la CNC est particulièrement appréciable. Bien que plusieurs personnes aient été nécessaires pour installer la CNC à son emplacement final, le montage peut être réalisé facilement seul.
En travaillant en studio, la configuration et le calibrage initiaux ont été un jeu d'enfant et j'ai pu commencer la découpe l'après-midi même où toutes les pièces étaient assemblées. J'ai opté pour l'utilisation principale du compresseur et du sécheur d'air, et j'ai obtenu jusqu'à présent d'excellents résultats, très nets. La mise en place des tests de matériaux a été simple, ce qui m'a permis d'affiner mes réglages.
J'adore la polyvalence de cette machine. La découpe de barres plates est un jeu d'enfant, mais l'assemblage et le soudage sont un vrai régal. Je suis encore novice en soudure, mais le dévidoir et la poignée laser inclus m'ont permis d'obtenir rapidement des résultats nets et précis. J'ai encore beaucoup à apprendre et j'ai hâte d'expérimenter les réglages plus avancés qui me permettront de perfectionner mes compétences.
Cela ressemble à une solution métallique tout-en-un performante, idéale pour les petits ateliers qui ont besoin de performances de soudage et de découpe de niveau professionnel sans une longue période d'apprentissage ni plusieurs machines.
Idéal pour la découpe CNC et le soudage laser à petite échelle, avec une grande variété de matériaux et d'épaisseurs. La possibilité d'utiliser un compresseur d'air et un sécheur plutôt que des gaz traditionnels offre une solution économique. La découpe de grandes pièces est possible, mais des améliorations sont nécessaires pour obtenir une pièce continue de plus de 60 cm (24 pouces).
