We Promise Excellence in Every Aspect.
Still Hesitant? See What You're Really Investing In.
Real Success Stories: High ROI, Zero Learning Curve
MetalFab lets me make 1,000+ tiny lure parts in-house, no more spending $250K on outsourcing. A profitable game-changer!
Almost no learning curve, totally worth it. The cuts and welds are so clean they're nearly perfect, slashing my post-processing work.
Waiting on suppliers for jigs killed our workflow & budget. Now, we take prototypes from CAD to finish in-house, reducing time from weeks to hours.
With over 40 years in welding, this is by far the easiest welder I have ever used. Its speed and accuracy slash project times, reduce labor costs and boost my profits.
By bringing cutting in-house, I've slashed my costs by 35%. The camera lets me use every inch of my material and scrap. That one feature alone is enough to pay for the machine.
Flexible Ways to Invest in Your Growth
*Discounts cannot be stacked, please choose the biggest savings.
Why Settle? See How xTool MetalFab Outperform Others
In the Box
FAQ
xTool MetalFab can cut/stainless steel, aluminum, brass, carbon steel, galvanized sheet, titanium, nickel alloy, magnesium.
Welding and cutting capabilities:
- The 1200W welder can weld up to 5mm stainless steel/carbon steel, while the 800W model handles up to 4mm.
- The 1200W welder can cut (handheld cutting) up to 5mm stainless steel/carbon steel, while the 800W model handles up to 3mm.
When paired with a CNC cutting platform:
- 1200W: Burr-free cuts for 5mm stainless steel, 4mm aluminum, 3mm brass, 10mm carbon steel/galvanized sheet. Cut Max. 12mm carbon steel with dross.
- 800W: Burr-free cuts for 4mm stainless steel, 2mm aluminum, 2mm brass, 8mm carbon steel/galvanized sheet.

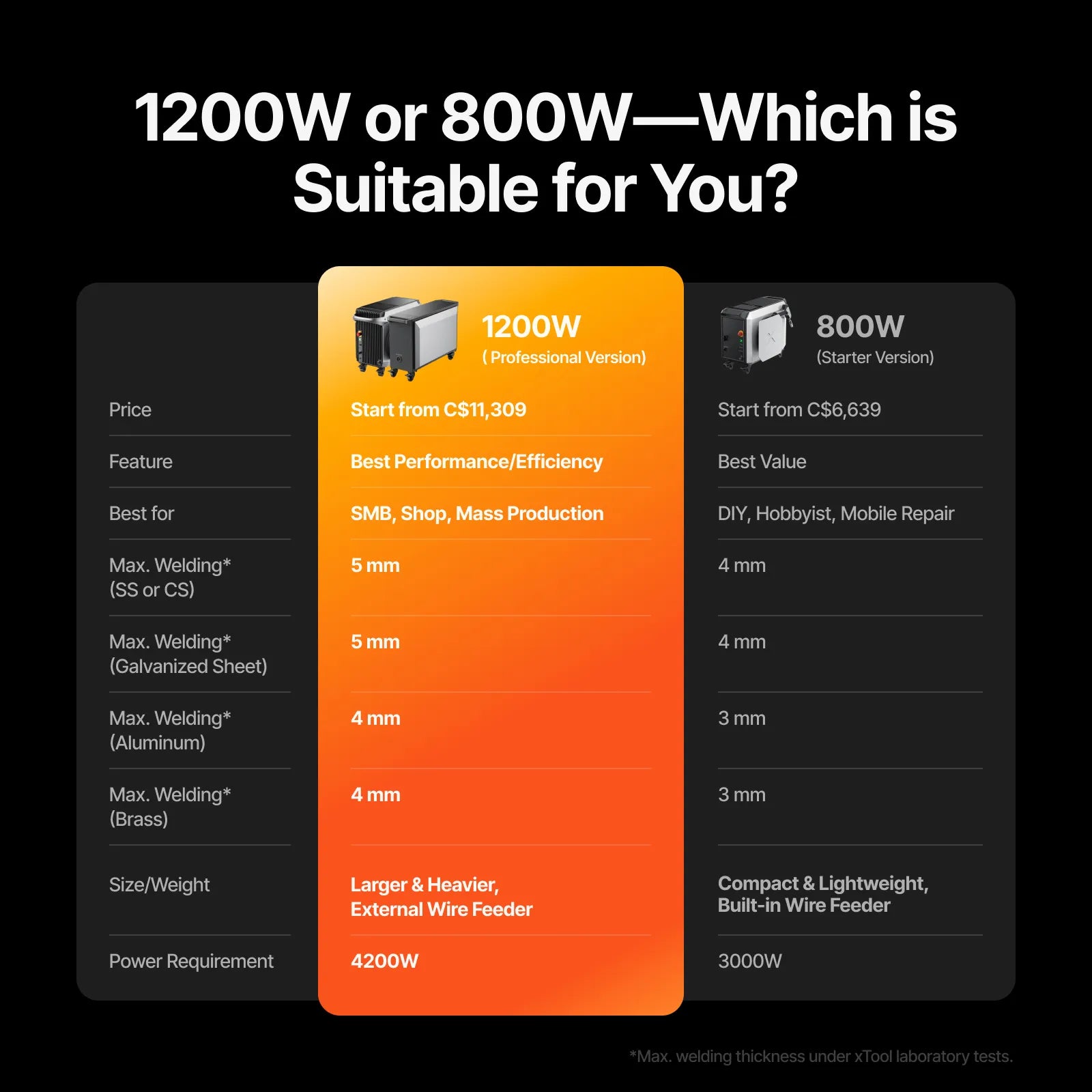

Design differences:
- The 1200W welder includes a free wire feeder, while the 800W model has a built-in wire feeding mechanism and is lighter in weight.
Welding: Nitrogen or argon gas with purity above 99.99% is suitable for most metals. The required welding pressure ranges from 0.1–0.2 MPa, with a gas flow rate of 15–30 L/min (argon is required for welding titanium alloys).
Cutting: Compressed air, nitrogen/argon (purity >99.99%), or oxygen are commonly used as shielding gases.
- xTool air compressor and air dryer provide stable compressed air, enabling burr-free cuts at 0.6 MPa for 4mm stainless steel, 4mm aluminum, 3mm copper, 1mm carbon steel, and galvanized steel (1200W laser) when paired with xTool SaveGas™ Nozzle. This setup significantly reduces costs compared to gas cylinders.
- Nitrogen/argon (at 1.2 MPa) can achieve burr-free cuts for the same materials (1200W).
- Oxygen is primarily used for cutting carbon steel and galvanized steel above 1mm thick. With a dual-layer nozzle and focal extension tube at 0.06–0.07 MPa, it can cut up to 10mm carbon steel/galvanized steel (1200W).
Cleaning: Compressed air is sufficient, but nitrogen or argon is recommended for brighter, oxidation-free results.
Yes, xTool MetalFab supports engraving on stainless steel, galvanized steel, titanium, and coated metals (e.g., anodized aluminum). It supports vector engraving, vector filling, and bitmap filling. Just use XCS for one-click parameter setup!
Note: To protect the laser, avoid engraving on high-reflectivity metals like copper.
The camera-driven workflow will significantly enhance your metalwork efficiency and minimize material waste.
xTool MetalFab integrates dual high-definition cameras for intelligent metal processing-advantages that products without cameras cannot match:
The 16MP Panoramic camera captures full-bed imaging for precise positioning and enables Smart Nesting function with up to 98.7% material use. The close-range camera enables micron-level precision for secondary/fine processing through localized high-res imaging.
xTool MetalFab operates on the XCSSoftware, designed for intuitive control and streamlined workflows:
It features the Material EasySet Library with100+ pre-optimized parameters for 30+ materials. You only need to select the material you want to cut, and all parameters can be applied with a single click. It also supports Auto Lead-in Lines, Automatic Path Optimization, which significantly improves cutting efficiency.
We have designed xTool MetalFab to ensure a smooth and simple user experience, so you don’t need to worry about lacking experience—you can get started in just five minutes!
It features the 550g ultra-light integrated welding gun which enables a 5-second quick-release. The 8-Inch Smart Touchscreen has 108+ built-in parameters for one-click use.
xTool MetalFab can weld up to 5mm stainless steel or carbon steel, and we have passed SGS welding quality tests, so you can rest assured about its performance and reliability!
Yes, we are building a global localized service network, with established local service teams in the U.S. and Europe. You can access:
- 24/7 online support (via email, live chat, or phone).
- 1-on-1 dedicated warranty assistance.
- Demo room reservations for in-person machine testing and material trials.
You can access the after-sales policy, shipping policy, warranty policy via the link.
The MetalFab laser welder operates at a voltage of 200-240V.
The 1200W model requires a circuit of 21A or higher, with a maximum power output of up to 4200W, while the 800W model requires a circuit of 15A or higher, with a maximum power output of 3000W (for Europe, a standard 230V-16A circuit can support the 800W model without modifications).
The CNC cutter is compatible with dynamic voltages of 100-240V.
For the US/CA, we provide NEMA-50P or NEMA-30P plugs. For other regions, we offer power cables that need to be installed by a qualified electrician. Please refer to the article for specific power requirements.
Customer Reviews
I truly didn’t expect this machine to arrive the way it did. I felt like it was shipped in a first class seat in an aircraft. I can’t wait to get started
The xTool Metal Fab is an absolute powerhouse for anyone serious about metal fabrication. From the moment it’s set up, it’s clear this machine was designed with precision, efficiency, and reliability in mind. Cuts are clean, consistent, and professional-grade, whether working on thin sheets or more demanding materials.
What really stands out is the thoughtful design. The interface is intuitive, setup is refreshingly straightforward, and the build quality feels rock-solid. It handles complex projects with ease while maintaining impressive accuracy, saving time without sacrificing results.
For creators, makers, and professionals alike, the xTool Metal Fab isn’t just a tool — it’s a serious upgrade to your workflow. Durable, versatile, and engineered for performance, it earns its place as a top-tier solution in modern metal fabrication.
Highly recommended for anyone who wants power, precision, and peace of mind in one machine.
Metal work has not been my background, but has always been a material I have been fascinated with, especially for crafting and small scale projects.

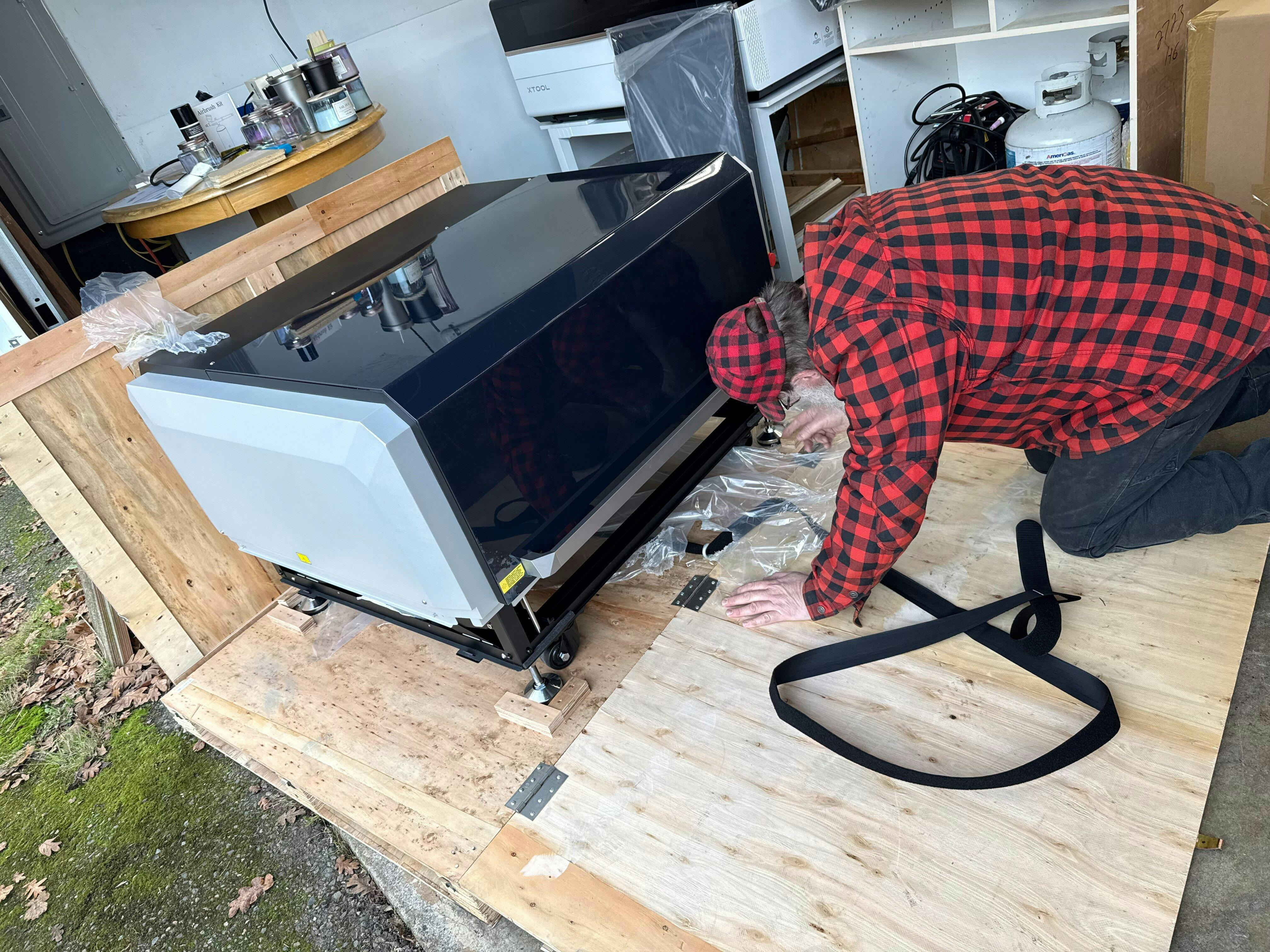

I was impressed at the packaging and organization of these machines through the shipment process. For the cost especially, it was clear that the pallets were designed for safe transit, and that everything arrived in top condition.
Set up was straightforward and easy to navigate with the included tools, documentation, and video support. The space saving features of the CNC especially impressed. While multiple hands were needed to help get the cnc into its final home, assembly was an easy solo project.
Working in Studio, the initial set up and calibration were a breeze and I was cutting the same afternoon all pieces were assembled in place. I have opted to primarily use the compressor and air dryer, and have achieved great, clean results so far. Material testing has been easy to set up to better dial in my settings.
I love the ability to "do it all" with this set up. Cutting flat stock has been great, but assembling and welding it has been a blast. I am largely a welding novice, but the included feeder and laser grip have made it easy to quick achieve clean and repeatable results. I have a lot to learn still and am excited to experiment down the road with the more advanced settings that will allow me to hone and deepen my skills.
This looks like a powerful all-in-one metal solution—perfect for small shops that need pro-level welding and cutting without a huge learning curve or multiple machines.
Excellent for small-scale CNC cutting and laser welding using a variety of materials and thicknesses. Flexibility in using the air compressor and dryer versus traditional gases adds a financially efficient option. Cutting larger pieces is possible, but improvements are needed to make one fluid continuous piece beyond 24”.
